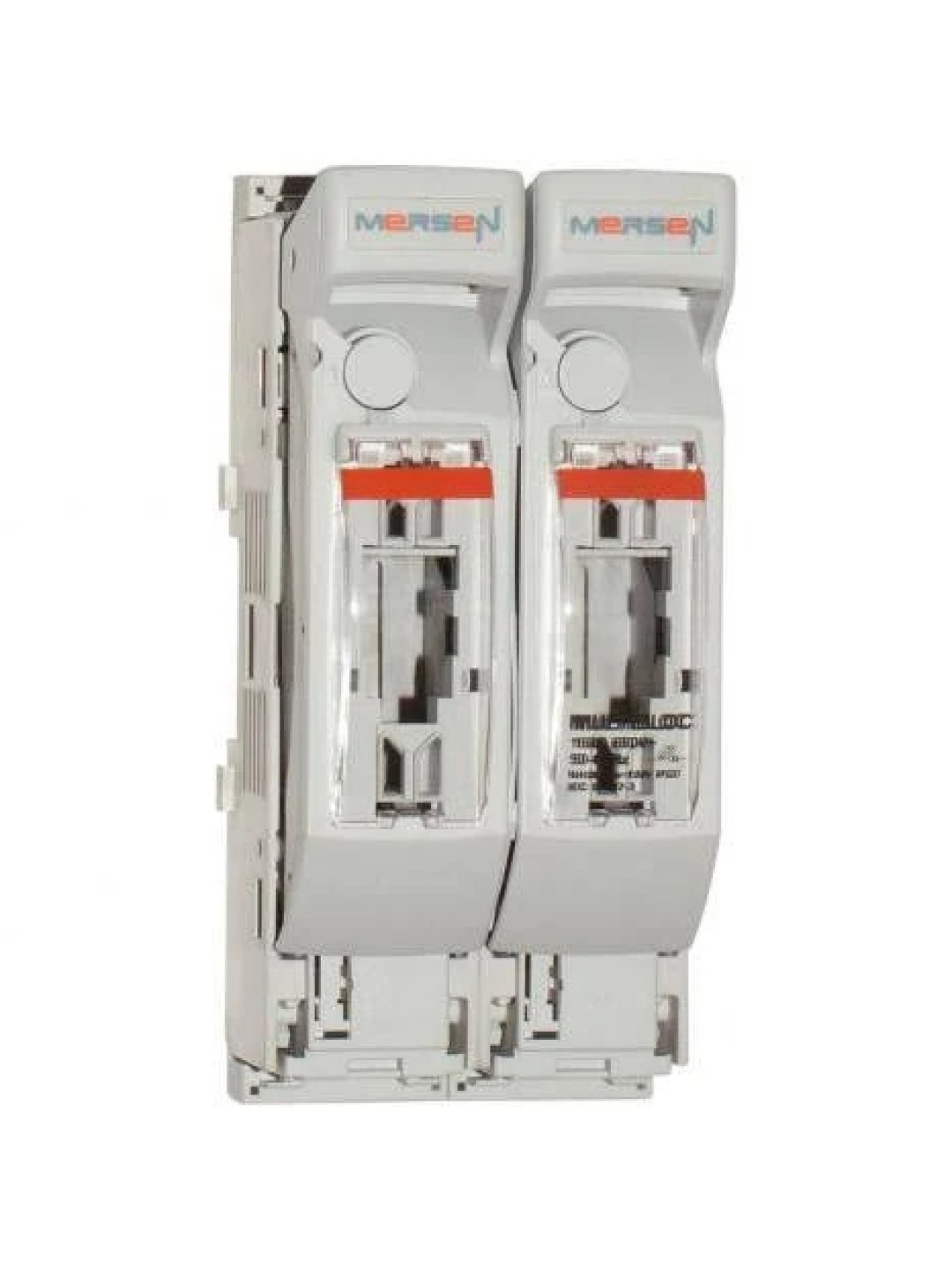

Battery Disconnect Mersen 2P-160A (NO FUSES)

Product Code:
Availability:

Battery Disconnect Mersen 2P-160Amp
In Stock

R799.00

Hurry! Only 8 left in stock!

Ex Tax: R799.00

Description Reviews (0)

Battery Disconnect Mersen 2P-160Amp

Fuse switch-disconnectors are intended for fuse-links with blade contacts size 00.
Enable safe disconnection not only of rated current, but also overcurrent up to octuple rated current.
Variability of connecting sets.
Measuring holes in the cover.
It is possible to lock the switch-disconnector cover.
It is equipped with a label for description of the protected circuit
Mounting directly on the panel by means of screws.
Adapter for busbar system with spacing 60 mm, busbar thickness 5 ÷ 12 mm, busbar width 12 ÷ 32 mm for 3-pole.
Terminals can be completed with terminal extensions for connection of conductors of cross-section up to 95 mm2 .
More switch-disconnectors side-by-side or flat can be installed without limitation of electrical parameters.
Connection Bottom connection is possible without limitation of electric parameters.
